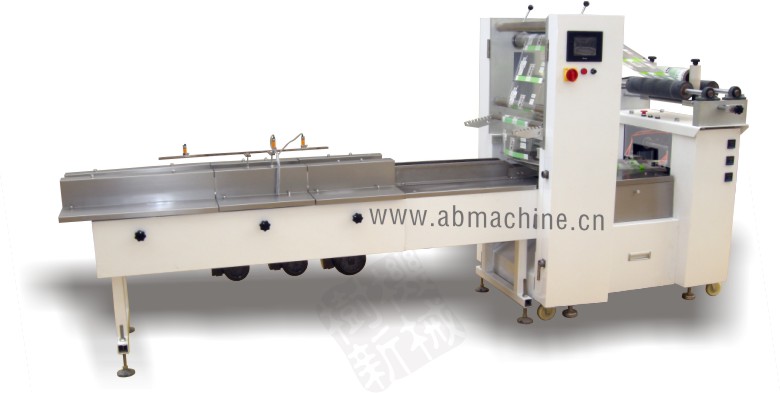

SMZ-900 Pillow packing machine (suitable for packing big product and product with plate )
- This is a new big packing machine, The original four axis drive control system, film centerless positioning, roll film are not afraid of its weight. And configurable automatic feeding device, fully automatic packaging can be realized. Using for paper r
- Tel：+86 15721208277
-
Content
|
SMZ-900 Pillow packing machine(適合包裝大尺寸的塊狀物品，或帶托盒的物品 ) |
Price: (Standard configuration)
Standard Fob Shanghai Port price: *****USD
Control system: four-motor drive
Human-machine interface:colorful touch screen
Spare parts: each present a set
Attachment: present a coding machine
Warranty: 1year
Warranty period: 12 months for free
After sale service: Free training, free installing, free spare parts
Payment: TT, 50% for deposit, balance after machine finished.
Shipping: Standard sea wooden case
Special need: OEM is ok
Features
SMZ - 600/900 automatic packing machine is designed by our company independent , it is suitable for large articles or big packing with box , original four-motor drive, digitizing input parameters, quickly alignment at the cursor, with three-dimensional angular institution at the same time, aplly to the big packing with box, packing, sealing smooth and nice, angular symmetry, on the stability, is the ideal packaging equipment of big packing.apllied object, for example: in the moderate packaging of biscuits, european-style cakes two packing , four packing, quick-frozen box food , paper roll packing
1. Patent product is characterized by special structure, convenient operation and stable performance;
2. Centerless positioning of the roll membrane can use the roll membrane with larger diameter and the membrane sending precision will not be influenced by its weight;
3. Man-machine interface: bag length, material level, cursor place, coding, air-flushing and other functions can be realized with digital setting; Directly inputting on the screen and then saving for debugging for the next time;
4. Fault self-diagnosis function makes it easy to display the fault;
5. Specially designed bag holder and lifting horizontal sealing structure can flexibly adapt to the packaging materials in different specifications;
6. You will finally select your favorite one among several optional configurations and perfect functions;
7. It is used with SMT-160, to iron the sealed mouth on both ends after packaging;
8. Material supply system can be automatically matched to realize automatic feeding;
Parameter
型 號 SMZ-600
包裝膜寬度 600mm
制袋長度 150-500mm
包裝物寬度 50-150mm
包裝物高度 10-120mm
卷膜直徑 <450mm
包裝速度 10-150bag/min
電源規(guī)格 220V/4KW
設備重量 750KG
L 3950mm
W 950mm
H 1450mm
L1 2500mm
L2 400mm
W1 380mm
H1 800mm
Model SMZ-900
Film width 900mm
Bag length OEM
Bag width OEM
Product height OEM
Film roll diameter <400mm
Speed 10-100bag/min
Power 220V/4KW
Weight 850KG
L 3950mm
W 1500mm
H 1450mm
L1 2500mm
L2 400mm
W1 600mm
H1 800mm
If you need special packing range of the size, the machine also can be OEM
Video Related
packing
beef slices, mutton slices and other quick-freeze food.
paper
roll packing + full automatic producing machine
paper roll flow producing line
paper roll flow producing line
Samples Related
Sample Related

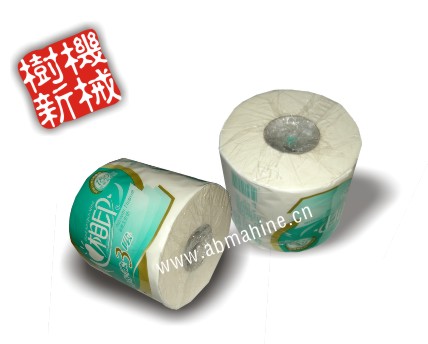

This machine matching with SMZT-160 can be for packing toilet paper roll, it can finish packing and heating shrinking at the same time. It also can be used for packing beef slices, mutton slices, baozi, steamed buns with plate.( Beef slices packing machine, mutton slices packing machine, paper roll packing machine).
