SMZF-280 Pillow packaging machine(Film From Below)
- Suitable for frozen, soft food, such as ice cream, the bun, etc. Inversion structure, suitable for pieces packing, and frozen food packaging. Double frequency conversion structure, bag length adjustment is very convenient, change specifications conven
- Tel：+86 15721208277
-
Content
|
SMZF-280 Pillow packaging machine(Film From Below) |
Price: (Standard configuration)
Standard Fob Shanghai Port price: *****USD
Control system: double frequency conversion structure

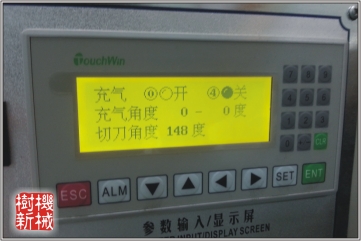

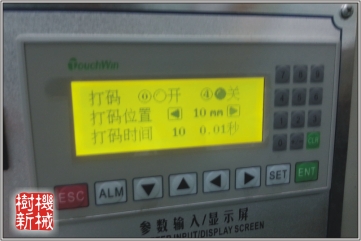

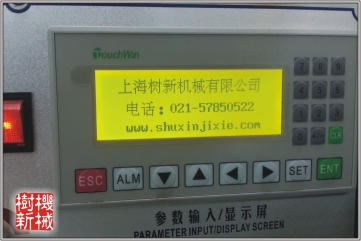

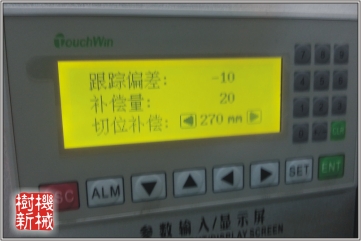

Interface：light touch screen
Spare parts: the present one
Attachment: giving code printer
Warranty: 1year
After sale service: Free training, free installing, free spare parts
Payment: TT, 50% for deposit, balance after machine finished.
Shipping: Standard sea wooden case
Features
Dual frequency conversion control system,meanwhile bag length is setting and cutting , the transmission system is terse , few fault and easy to maintain
Man-machine interface, parameters setting convenient and quick ,the cursor position all can realize the digital input
Positioned stop function, non-stick knives, do not waste packaging film
Independent temperature control, suitable for a variety of packaging film,Inversion structure
Overhead center sealer prevents heat damage
Parameter
型 號 SMZF-280
包裝膜寬度 280mm
制袋長度 70-150mm
包裝物寬度 30-90mm
包裝物高度 1-35mm
卷膜直徑 <300mm
包裝速度 10-220bag/min
電源規格 220V/3KW
設備重量 400KG
L 4000mm
W 900mm
H 1160mm
如果有特殊要求的包裝范圍，可以根據您的需求定制．
Samples Related
Has not
published sample packages of this machine
Photos Related
Knowledge Related
This machine has upside down
structure, middle sealing is up, product for packing is down, so it is suitable
for packing ice cream and other freeze products, or baozi, steam buns, also
suitable for multi-units product. At present, many customer have been using
this machine for packing ice cream, Please contact our salesman for details:
40001-42221, we welcome you to visit our company.
